Trailer and Suspension U-Bolts
Reviewed as application-controlled parts. Send the axle or mating seat, spring stack, plate and nut system, installation method, load spectrum and customer specification.
View trailer and suspension U-boltsFasteners From Turkey · Specification-Led RFQ Supply

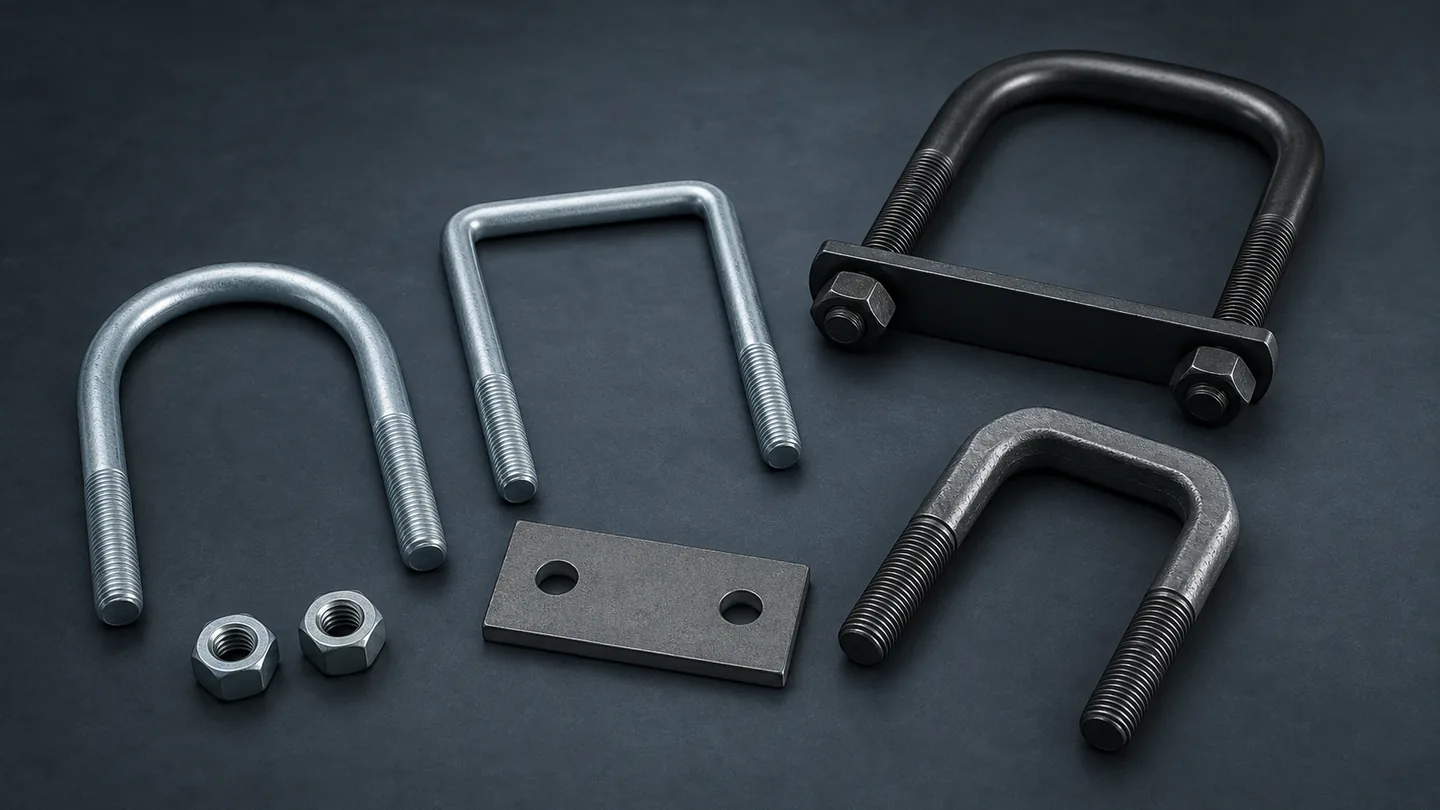

U-Bolts from Turkey: Round, Square and Custom Types
FastenersFromTurkey supplies round, square, suspension and custom U-bolts from Turkey for industrial buyers. The product family, interface, dimensions, thread, material, coating, documentation, quantity and export scope are confirmed from the RFQ.
- Specification-led review before quotation
- Confidential drawing handling
- Export-document coordination
U-bolts supplied from Turkey for industrial RFQs
RFQ Qualification
U-bolt order qualification summary
Confirm these order-specific inputs before quotation.
Fasteners From Turkey
Confirmed per RFQ
| Field | Order input | Confirmation |
|---|---|---|
| Product scope | Round, square, suspension or custom U-bolt for the stated interface | Type and application confirmed per RFQ |
| Standard/drawing | Controlled drawing, customer specification or applicable DIN/SAE reference | Governing revision confirmed per RFQ |
| Dimensions/thread | Rod diameter, inside width, leg length, bend radius, thread and tolerances | Dimensional inputs confirmed per RFQ |
| Material/mechanical | Material, grade or property class and required mechanical values | Order requirement confirmed before quotation |
| Finish/coating | Coating, corrosion and friction requirements as applicable | Finish scope confirmed per RFQ |
| Documentation | Required certificate, inspection, test, PPAP or TPI scope | Availability and deliverables confirmed per order |
| Commercial | Quantity, MOQ drivers, tooling if required, packing, Incoterm and destination | Commercial basis confirmed in the quotation |
| Supplier role | FastenersFromTurkey supplies U-bolts from Turkey. | Order-specific supply scope confirmed from the RFQ |
Values remain order-specific until confirmed in the quotation.
Product scope
U-Bolt Supply Options from Turkey
Start with the child page that matches your interface and drawing basis. Each U-bolt route below is qualified as its own RFQ with its own dimensions, material and coating requirements.

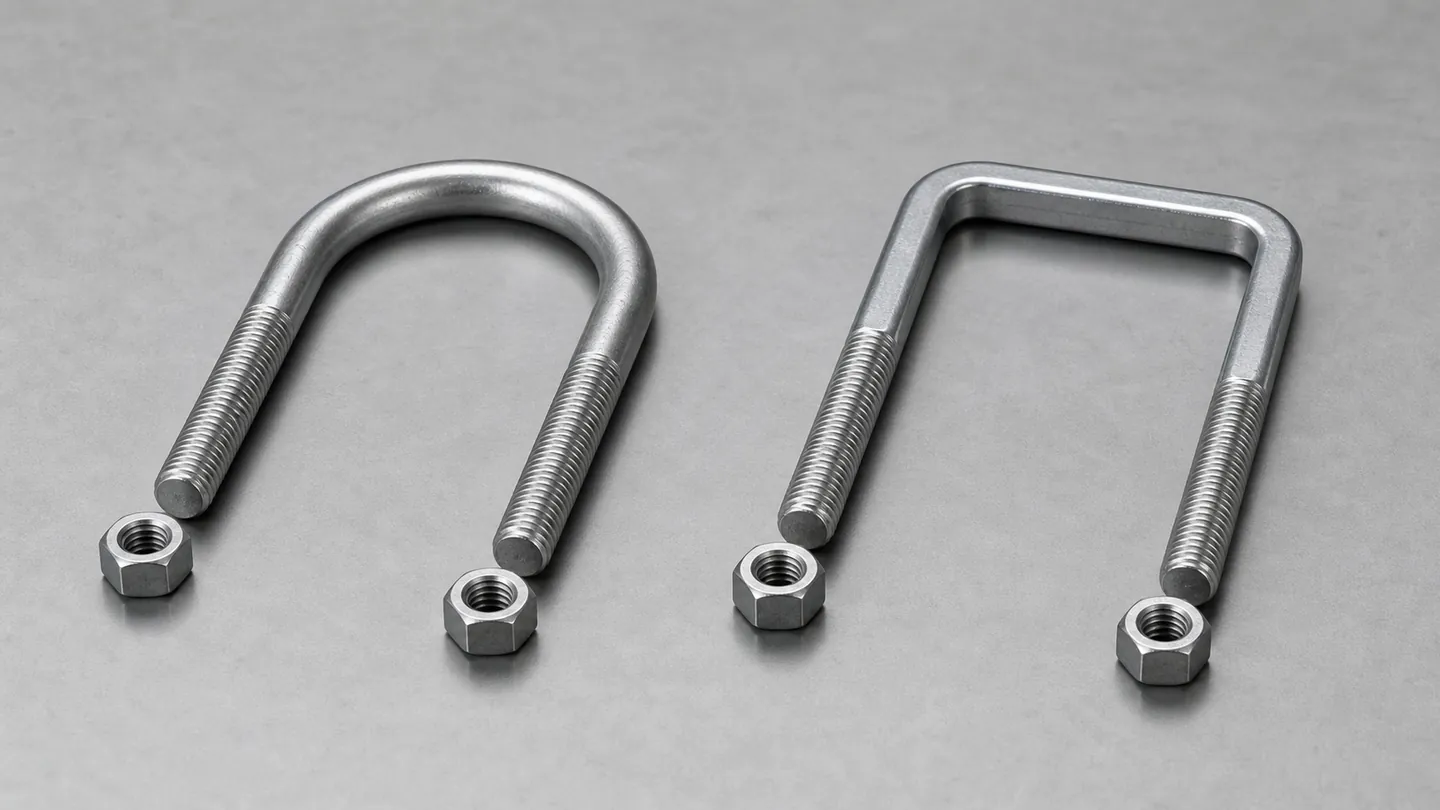

Round and Square U-Bolts
Round forms follow a curved mating surface such as a pipe; square forms fit rectangular sections or drawing-defined interfaces. Quote against the actual mating geometry rather than the nominal width alone.
View round and square U-bolts

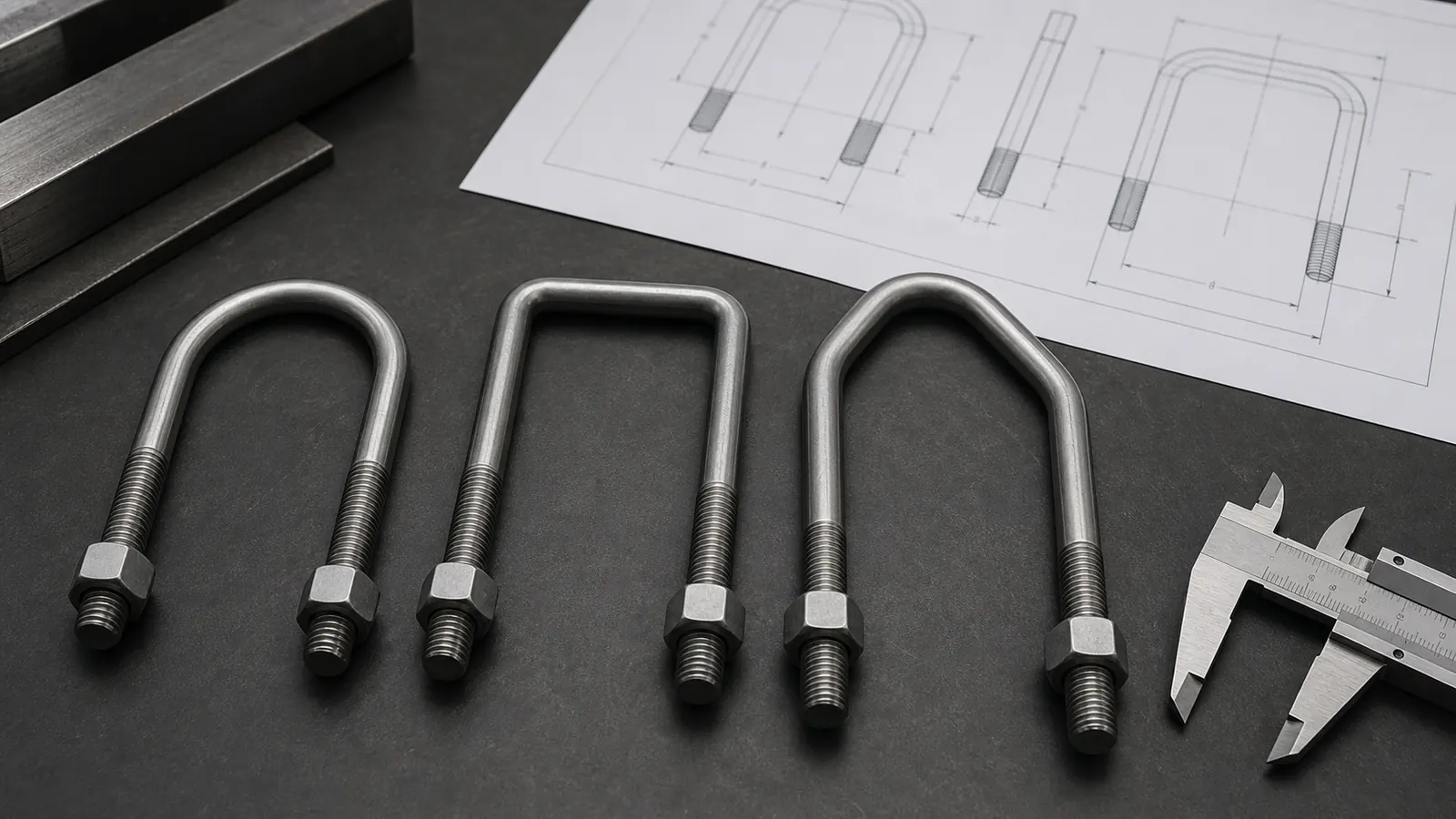

Custom and Heavy-Duty U-Bolts
Non-standard widths, asymmetric legs, special threads, offsets, formed ends or customer-defined plates and nuts, qualified from the controlled drawing and service requirements.
View custom and heavy-duty U-boltsHow to specify
How to specify a complete U-bolt RFQ
The correct U-bolt type follows the mating component, load path, bend form and installation method. A suspension assembly, round pipe clamp, rectangular-section clamp and custom bracket may share a U-shaped appearance while requiring different dimensions, materials, mechanical properties, coatings and validation evidence.
Configuration and application routes
Trailer and suspension, round and square, and custom or heavy-duty requirements are reviewed as separate routes. Selection also depends on whether the joint is permanent or serviceable, exposed or sheltered, and installed with a separate plate, washers and nuts.
Request Quote
Dimension definition
A U-bolt size becomes quotable only when every dimension is named and tied to a drawing convention. Rod diameter, inside width, inside height, thread length and overall leg length must each carry a stated datum, basis and tolerance.
Review dimension requirements

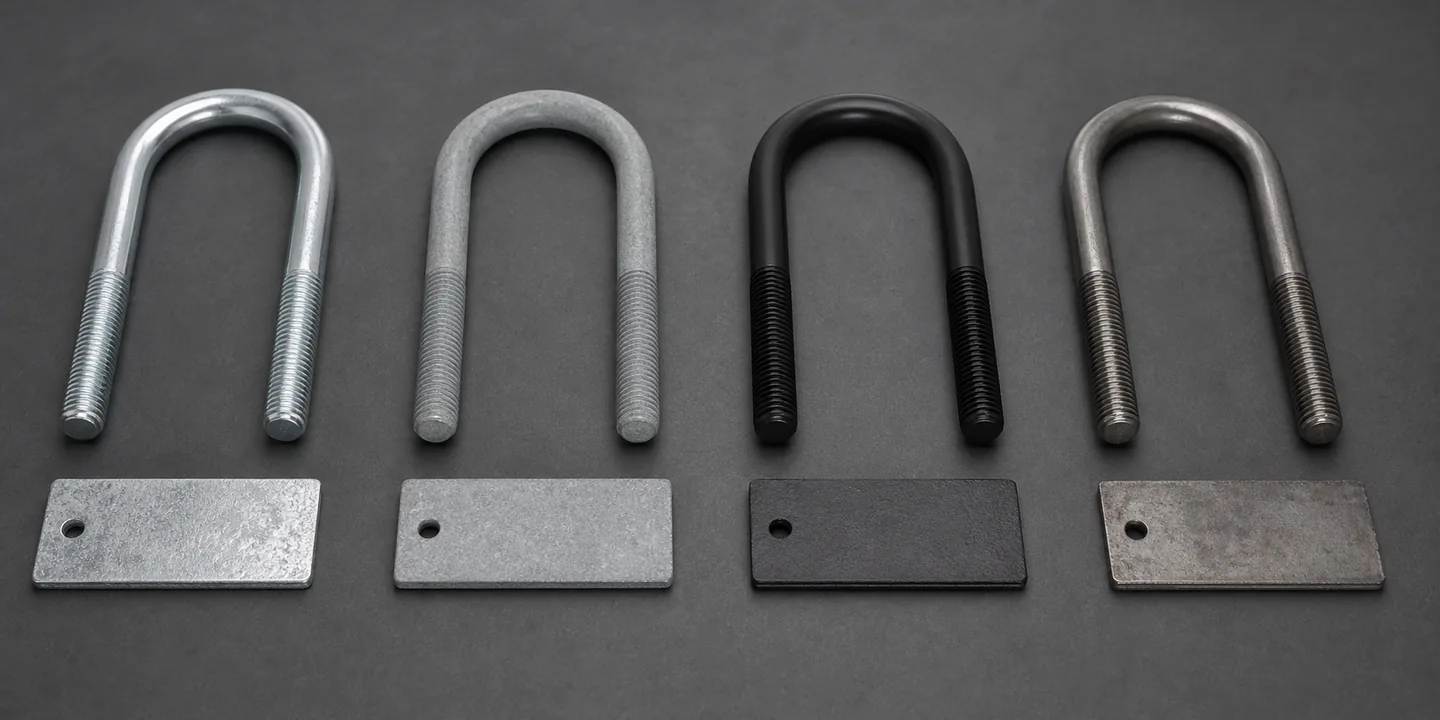

Coatings and corrosion targets
Choose a U-bolt coating from the service environment, corrosion target, thread fit, friction condition, material strength and applicable customer specification. A finish name alone does not establish coating thickness, salt-spray performance or corrosion life.
Request Quote
RFQ, inspection and export documentation
Document type, inspection level, acceptance criteria, language and submission timing must be stated before quotation. Packaging, labeling, destination and Incoterm are reviewed with the commercial offer.
Request QuoteConfiguration routes

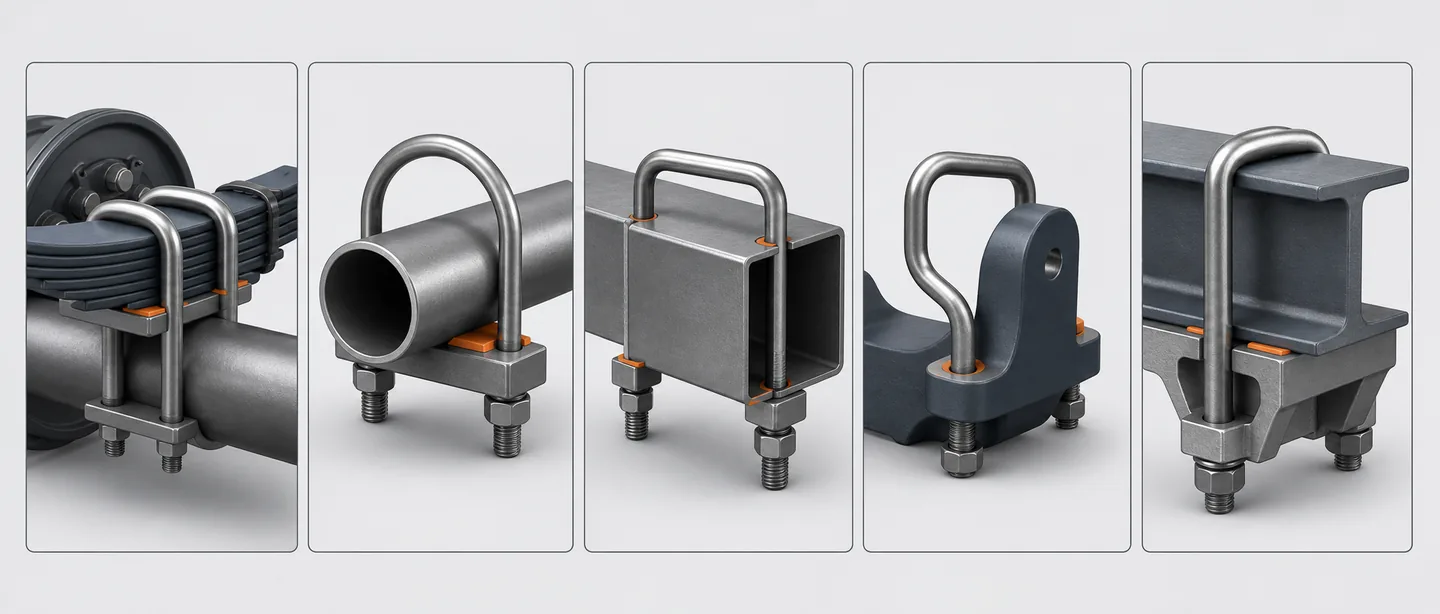

U-bolt types and configuration routes
Selection depends on whether the joint is permanent or serviceable, exposed or sheltered, and installed with a separate plate, washers and nuts. State vibration, temperature, moisture, chemicals and access constraints when they affect the joint.
| Configuration route | Typical starting input | Application question | Evidence needed before approval |
|---|---|---|---|
| Trailer and suspension | Drawing, axle/leaf-spring interface or controlled reference | Is the joint safety-critical and cyclically loaded? | Governing drawing, load and fatigue criteria, material, coating and customer approval |
| Round or square | Pipe/section geometry and inside dimensions | Is the clamp bearing on a round tube, pipe, box section or plate? | Dimensioned interface, tolerance, plate/nut arrangement and service environment |
| Custom and heavy-duty | Customer drawing and revision | Does the part need an offset, non-standard bend, long legs or special thread? | Complete geometry, material, mechanical requirements, volume, tooling and inspection plan |

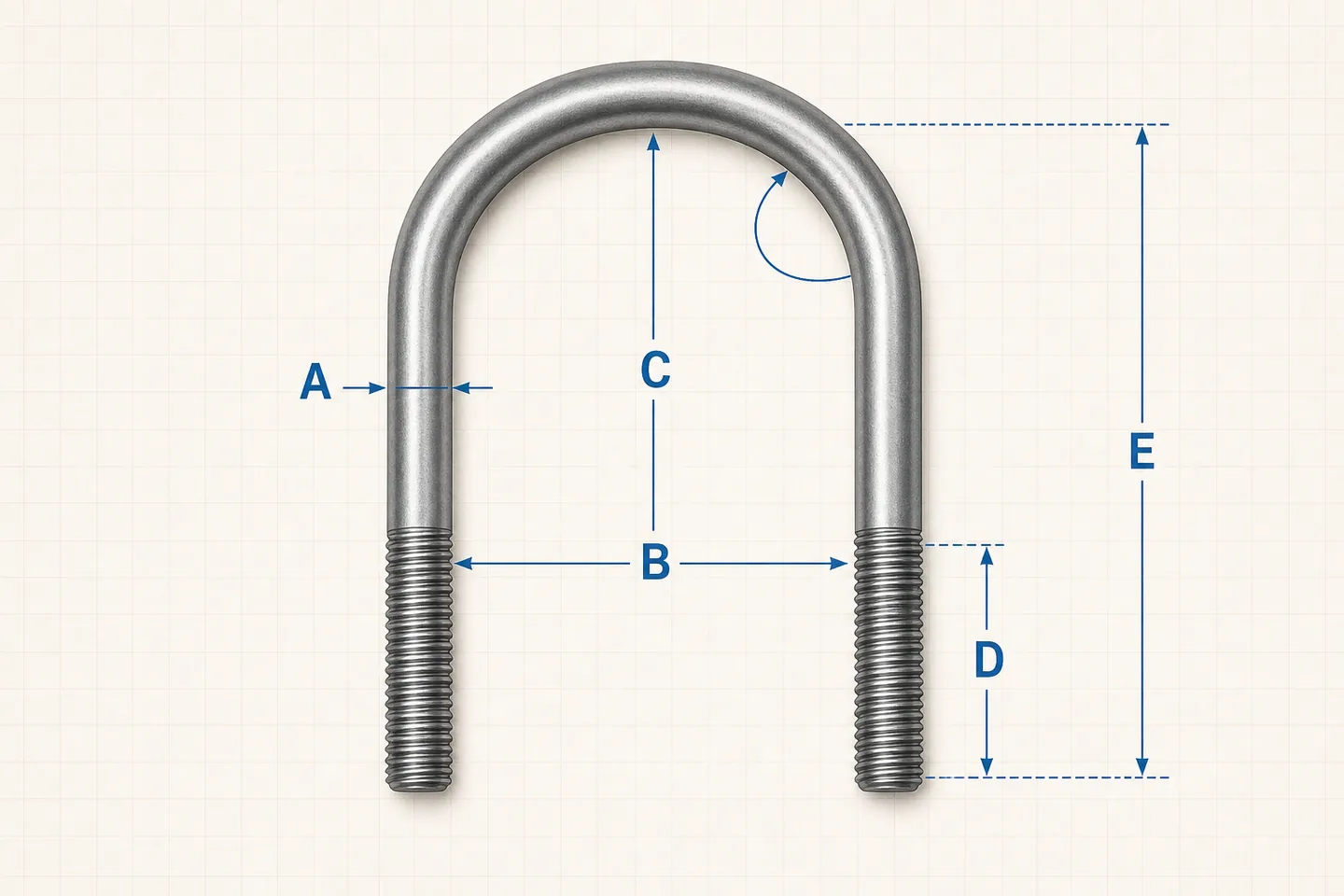

Dimension checklist
How to specify U-bolt dimensions
Values such as “50 mm U-bolt,” “2.5 inch U-bolt” or “8 inch U-bolt” can refer to different features. State the unit system, dimension basis, tolerances and mating parts instead of relying on a catalogue phrase.
| Symbol | Dimension | RFQ definition |
|---|---|---|
| A | Rod diameter | Finished or pre-coating diameter basis and tolerance |
| B | Inside width | Clear distance between the legs at the defined location |
| C | Inside height | Distance from the inner crown to the stated leg reference |
| D | Thread length | Usable thread length on each leg |
| E | Overall leg length | Overall length measured from the drawing-defined datum |
How we supply U-bolts from Turkey
One RFQ, reviewed for order-specific U-bolt supply
FastenersFromTurkey supplies and exports U-bolts from Turkey. We review the requirement, confirm order-specific manufacturing feasibility and define the quotation and document scope.
Specification completeness first
Standard items need the exact standard and revision; application-controlled items need a drawing or OEM/customer reference. Nominal diameter alone is not enough for a safe substitution.
Order-specific feasibility review
We check whether the selected route can support the required geometry, material, process, coating and evidence package. Capability, MOQ, tooling, timing and commercial terms are confirmed for the specific RFQ rather than published as universal values.
Documentation and export coordination
Material, dimensional, mechanical or coating documents can be coordinated when specified, supported by the selected route and included in the approved order. Certificate ownership and production evidence stay attributed to the applicable manufacturer.
Standards scope
Standards and application-specific requirements
No single standard governs every U-bolt application. The purchase order, controlled drawing and applicable standard revision must agree on geometry, material, mechanical properties, thread, coating and inspection. A pipe strap reference cannot be applied automatically to an automotive suspension or custom industrial clamp.
| Reference | Verified scope used here | Suitable context | Information still needed | Source |
|---|---|---|---|---|
| DIN 3570:1968-10 | Steel straps for tubes in the stated standard scope | Pipe-fastening U-bolts where the requested form and range match | Standard revision, pipe/interface size, material, finish and dimensional requirements | DIN Media |
| SAE J429_201405 | Mechanical and material requirements for externally threaded inch-series fasteners, including U-bolts within its stated scope | Specified inch-series automotive-related U-bolts | Grade, diameter, application requirements, test plan and customer approval | SAE Mobilus |
| Customer/OEM drawing | Application-specific geometry and acceptance criteria | Suspension, custom and other drawing-controlled parts | Current drawing, revision and approved deviations | Controlled RFQ document |
Standards and documentation
No single standard governs every U-bolt application
The purchase order, controlled drawing and applicable standard revision must agree on geometry, material, mechanical properties, thread, coating and inspection. A pipe strap reference cannot be applied automatically to an automotive suspension or custom industrial clamp.
DIN 3570 for steel pipe straps
Relevant where the request is genuinely for steel straps used with tubes and the requested dimensions and form fall within the standard. It should not be generalized across suspension, square or custom U-bolts. The exact revision and any purchaser additions must be named in the RFQ.
SAE J429 for specified inch-series parts
May govern mechanical and material requirements for qualifying inch-series externally threaded fasteners, including U-bolts within its stated scope. It does not replace the application drawing, fatigue criteria, coating specification, assembly controls or customer approval.
Drawing-controlled requirements
The drawing controls when geometry, materials, heat treatment, threads, tolerances, coatings or testing extend beyond a catalogue standard. Current DIN 525 covers studs for welding; it must not be presented as a U-bolt standard.
Inspection and quality documentation
Depending on the approved order, requirements may include material identification, dimensional reports, thread checks, mechanical test evidence, coating declarations or reports, batch traceability and packaging verification.
Materials and mechanical requirements
Specify the material, not the phrase “high tensile”
Material and strength must be specified rather than inferred. The RFQ should name the material grade or property requirement, applicable heat treatment, thread system, mechanical tests and acceptance values. Any public range remains subject to order-specific manufacturing-capability confirmation.
Material, grade or property-class inputs
State whether the requirement follows a named material grade, ISO property class, SAE grade or customer-specific mechanical values. Include the standard revision, diameter range and any hardness, tensile, proof-load or decarburization requirements that apply. Metric and inch systems are not drop-in equivalents; thread form, diameter basis and governing standards must remain explicit.
Load, fatigue and safety-critical application review
Static clamp load, cyclic bending, fatigue, temperature, installation preload and environmental exposure affect the specification. Suspension and automotive U-bolts are safety-critical parts; substitution requires the buyer's or OEM's engineering approval. Do not use a generic torque, load, reuse or service-life value without a validated joint design, installation method and test basis.
Coating type, thickness and salt-spray requirement
Specify the coating family, color only when relevant, target thickness and measurable corrosion requirement. Hot-dip galvanized, electroplated, zinc-flake-like and other finishes have different dimensional and process implications. Availability and performance are confirmed from the selected route and approved test requirement; visual appearance is not proof of compliance.
Thread fit, friction and hydrogen-embrittlement controls
Coating buildup can change thread fit, especially when both the U-bolt and nut are coated. Lubrication and friction condition influence installation behavior. For hardened or high-strength parts, the coating process must address hydrogen-embrittlement risk through the applicable specification, process controls and validation plan. The buyer should define whether installation or torque/clamp-force testing is required.
Coating inputs
Coatings, corrosion targets and service conditions
A finish name alone does not establish coating thickness, salt-spray performance, corrosion life or compatibility with the mating nuts and plate.
| RFQ input | Define | Why it matters |
|---|---|---|
| Coating system | Exact finish or customer specification | Controls process route and compatibility |
| Thickness | Target and acceptance range | Affects corrosion protection and thread fit |
| Corrosion test | Method, duration and acceptance criteria | Prevents vague “corrosion-resistant” claims |
| Friction/lubrication | Required condition and test basis | Influences installation and clamp behavior |
| Hydrogen-embrittlement control | Material/hardness risk and required prevention/testing | Critical for susceptible hardened parts |
Applications and requirements
Application determines the interface and evidence package
Start by identifying what is clamped, whether the load is static or cyclic, how the joint is installed and what failure would mean. Then define geometry, material, coating, mating parts, inspection and engineering approval around that service condition.

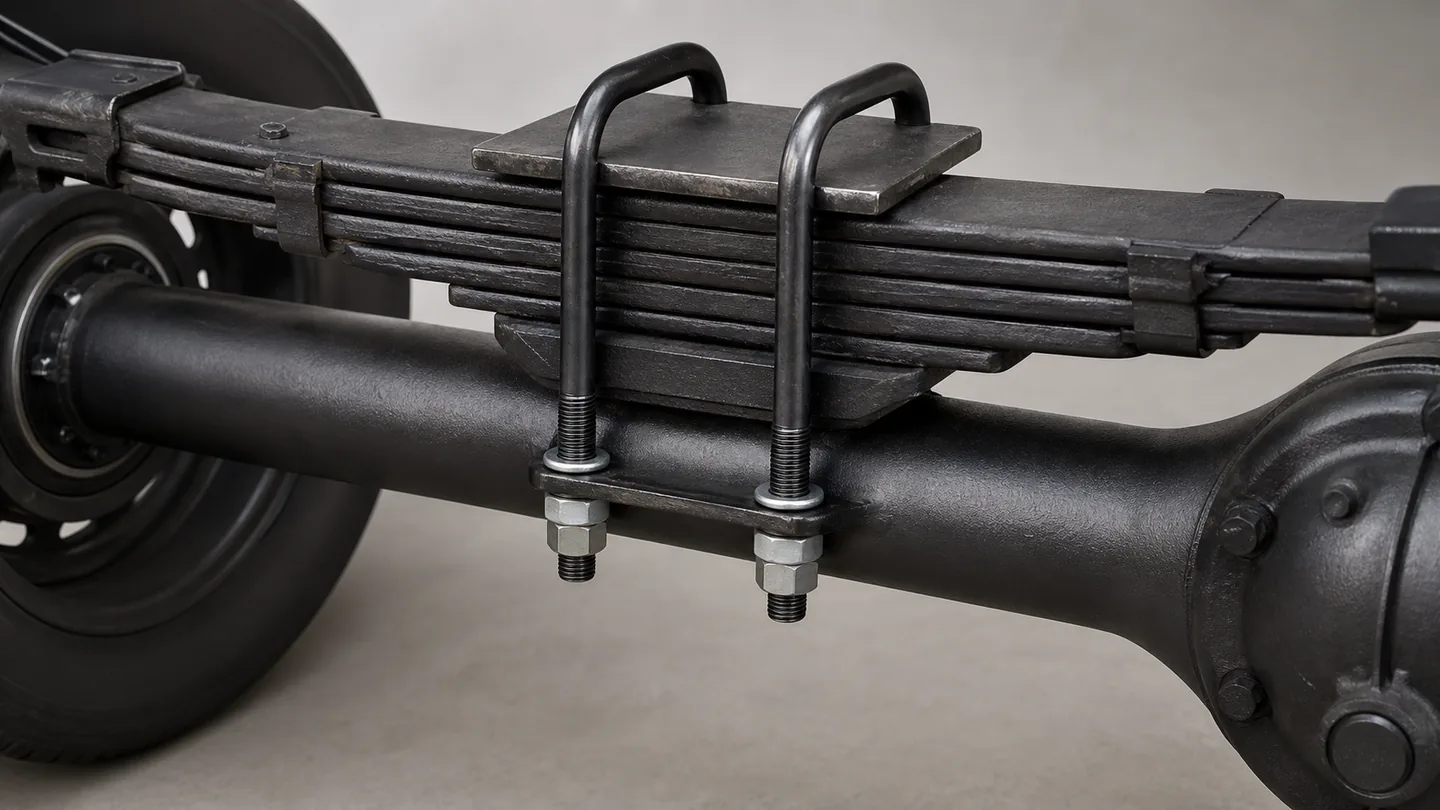

Vehicle, trailer and suspension
These assemblies can involve cyclic loads, fatigue-sensitive bends, controlled tightening and customer-specific acceptance. Suspension and automotive U-bolts are safety-critical parts; substitution requires the buyer's or OEM's engineering approval. Do not substitute from a visual match or a nominal size.
Pipe, structural and general industrial clamping
Begin with the actual outside geometry, support arrangement, bearing surface and service environment. Confirm whether the U-bolt restrains, supports or guides the component and whether movement, vibration or temperature changes are expected.
Materials and mechanical requirements
State whether the requirement follows a named material grade, ISO property class, SAE grade or customer-specific mechanical values. Include the standard revision, diameter range and any hardness, tensile, proof-load or decarburization requirements. Metric and inch systems are not drop-in equivalents.
Matching plates, nuts, washers and interfaces
A U-bolt bracket or mounting plate must match the leg spacing, hole size, plate thickness, bearing area and installation method. If these items are supplied as a set, include the complete assembly drawing and define whether they require separate inspection or packaging.
Documentation, packaging and export
Quality documentation, inspection and export review
Inspection follows the purchase specification. Document type, inspection level, acceptance criteria, language and submission timing must be stated before quotation.
Quality documentation and inspection support
Depending on the approved order, requirements may include material identification, dimensional reports, thread checks, mechanical test evidence, coating declarations or reports, batch traceability and packaging verification.
Packaging and quantity review
U-bolts bulk supplier inquiries should state order quantity and annual volume, packing-unit preference, corrosion protection, label fields, batch separation, destination and unloading constraints. Plain cartons, lined crates or palletized formats are selected for the approved part and route; no packaging format is universal.
Export terms and delivery basis
EXW, FOB Turkish port (Istanbul, Izmir/Aliaga, Mersin, Gemlik, Iskenderun or Derince), CFR or CIF can be reviewed per RFQ. The commercial offer confirms the available Incoterm, export packing, transport basis and delivery target. MOQ and lead time depend on geometry, material, tooling, coating, tests, order size and destination.

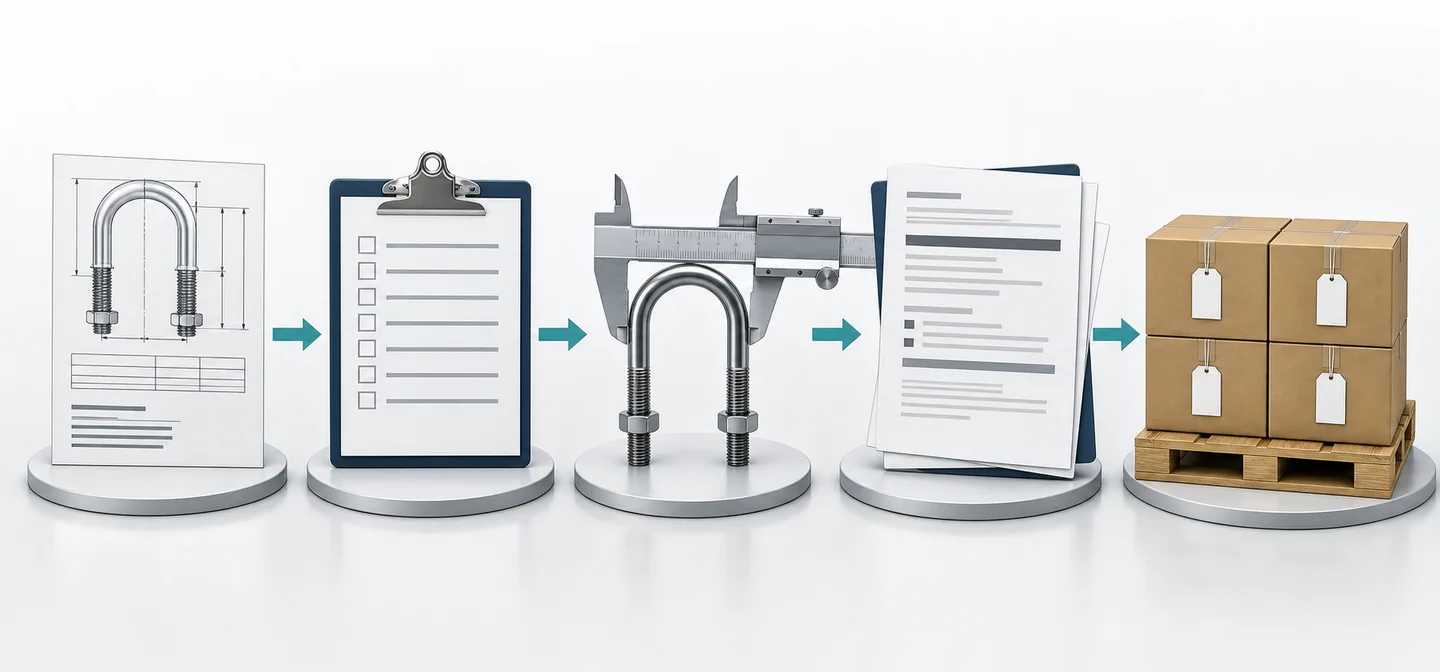

RFQ process
From drawing to commercial quotation
- 01
Send the drawing or specification
Provide the controlled drawing or standard and revision with application, rod diameter, inside width and height, leg and thread length, thread pitch, bend form, material, coating and quantity.
- 02
Specification completeness review
We confirm what each nominal dimension means, identify the governing reference and flag undefined datums, tolerances, mating parts or acceptance criteria.
- 03
Manufacturing route qualification
Order-specific manufacturing capability is reviewed against the required geometry, material, process, coating, inspection and documentation package.
- 04
Clarifications or commercial quotation
We return clarification points or a commercial quotation with packaging, labeling, destination, Incoterm and delivery target for the approved requirement.
RFQ FAQ
Frequently asked questions
What dimensions are needed to quote a U-bolt?
Provide the rod diameter, inside width, inside height or leg length, thread length, thread pitch, bend form and any required tolerances. A dimensioned drawing is preferred.
Can FastenersFromTurkey source standard and custom U-bolts?
FastenersFromTurkey supplies standard and drawing-led U-bolts after reviewing the application, dimensions, material, coating and quantity. Manufacturing capability and order-specific supply scope are confirmed before quotation.
Which U-bolt standard should I specify?
The correct reference depends on the application. Pipe straps, automotive U-bolts and custom industrial clamps may use different standards or customer drawings, so the governing reference and revision should be confirmed in the RFQ.
How should a 2.5-inch or 50-mm U-bolt be defined?
State whether the value refers to inside width, nominal pipe size, rod diameter, leg length or another dimension. Include the unit system and a drawing to prevent ambiguity.
What coating and documentation details should be included?
Specify the coating system, target thickness or corrosion test requirement, service environment and required material, dimensional, mechanical or coating documents. Availability is confirmed during RFQ review.
What determines MOQ and lead time for U-bolts?
MOQ and lead time depend on whether the item is standard or drawing-led, its dimensions, material, tooling, coating, testing, quantity, packaging and destination. They are confirmed for the specific RFQ.
Request a quote
Send a complete U-bolt RFQ
FastenersFromTurkey supplies round, square, suspension and custom U-bolts from Turkey. Send the controlled drawing or standard and revision, application, bend and interface dimensions, thread, material and mechanical requirements, coating, mating parts, document scope, quantity, packing, Incoterm and destination for the specific RFQ.
