Custom and heavy-duty U-bolts reviewed from a dimensioned drawing
Confirm these order-specific inputs before quotation.
| Field | Order input | Confirmation |
|---|---|---|
| Product scope | Custom or heavy-duty U-bolt made to the stated drawing or purchase specification | Type and application confirmed per RFQ |
| Standard/drawing | Controlled drawing and applicable ASME, SAE or ISO reference within its scope | Governing revision confirmed per RFQ |
| Dimensions/thread | Bend form, rod diameter, widths, leg lengths, thread and tolerances | Dimensional inputs confirmed per RFQ |
| Material/mechanical | Material, grade or property class and required mechanical values | Order requirement confirmed before quotation |
| Finish/coating | Finish, coating, corrosion and friction requirements as applicable | Finish scope confirmed per RFQ |
| Documentation | Required certificate, inspection, test, PPAP or TPI scope | Availability and deliverables confirmed per order |
| Commercial | Quantity, MOQ drivers, tooling if required, packing, Incoterm and destination | Commercial basis confirmed in the quotation |
| Supplier role | FastenersFromTurkey supplies custom and heavy-duty U-bolts from Turkey. | Order-specific supply scope confirmed from the RFQ |
Values remain order-specific until confirmed in the quotation.
Custom made U-bolts can differ in bend form, inside radius, tangent location, leg equality, usable thread length, material, finish and mating hardware. The controlled drawing is reviewed for fit with an appropriate manufacturing route; feasibility is not inferred from a photograph or a width-and-length description.
Width and length alone are not enough to quote a custom U-bolt. Measurement conventions, rod and thread diameters, pitch, thread fit, bend radius, unequal legs and tolerances can change both assembly fit and the manufacturing route. Send a dimensioned drawing and identify the unit system; metric and inch data are reviewed without assuming they are interchangeable.
Review dimension requirements
Heavy-duty is not a universal U-bolt grade or load rating. Suitability depends on the application load and duty cycle, geometry, material and mechanical requirements, thread, joint hardware, finish, installation method and acceptance tests approved by the buyer's engineer. FastenersFromTurkey does not assign load capacity from rod diameter alone.
See the heavy-duty inputs
Plain, zinc, zinc-flake-like, hot-dip galvanized or another specified finish can be reviewed as RFQ categories, subject to manufacturer verification. State coating system, thickness or corrosion target, test method and endpoint, appearance needs and mating-hardware compatibility. Finish samples show generic appearances only; they are not a performance ranking or availability list.
Request QuoteState rod diameter separately from the finished thread designation, define inside width and both legs independently, and show the bend radius with the tangent or centerline convention that controls mating-part clearance.

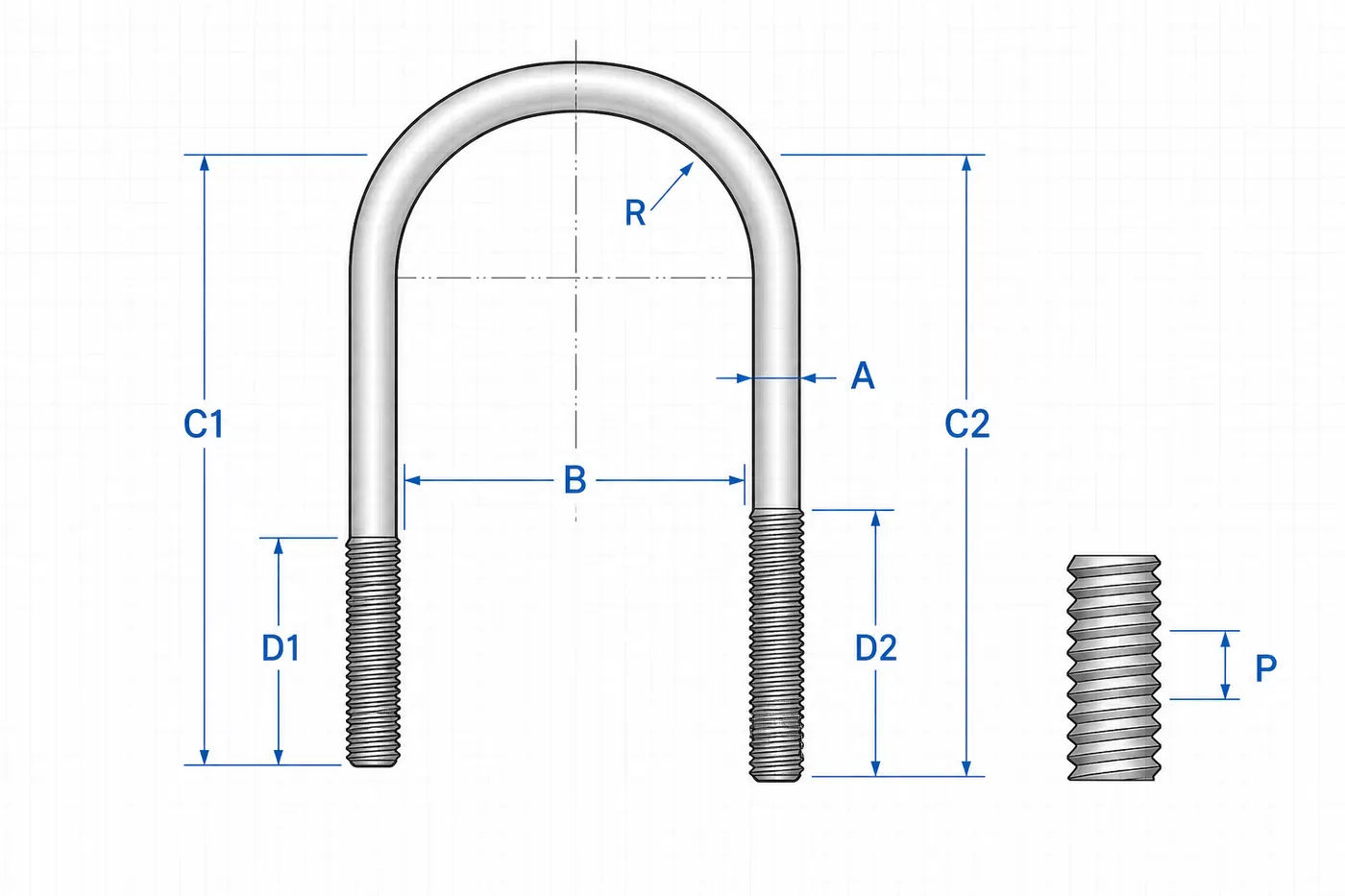

| Symbol | Dimension | RFQ definition |
|---|---|---|
| A | Rod diameter | Rod diameter stated separately from the finished thread designation |
| P | Thread, pitch and class | Metric or UNC/UNF, pitch or threads per inch, thread tolerance or class and the intended nuts and washers |
| B | Inside width | Clear distance between the legs at the defined location |
| C1 / C2 | Leg lengths | Each leg dimensioned independently; state whether height is measured to the inside crown, centerline, tangent or overall end |
| D1 / D2 | Usable thread lengths | Usable thread length on each leg, with the post-finish acceptance requirement when plating or galvanizing affects the ordered thread fit |
| R | Inside bend radius | Inside bend radius with tangent points or centerline convention and the tolerances controlling mating-part clearance |
| — | Joint hardware | Plate-hole spacing, washer, nut and plate requirements when they form part of the ordered assembly |
Angle, V, slant, offset, wide-radius and unequal-leg forms may be reviewed when the drawing defines the required geometry and functional interface. Show where each dimension is taken and identify whether a value refers to the inside surface, centerline or outside envelope. If new tooling, samples or first-article approval may be required, that route is confirmed before the commercial offer.
Define bend form, inside radius, tangent or centerline and tolerances in the RFQ. The review outcome is feasibility and the tooling route.
Define leg A, leg B and thread length on each side. The review outcome is a drawing-controlled quotation; do not rely on a note such as "one side longer".
Define load case, duty, environment and acceptance criteria. The review outcome is a material, mechanical and test proposal for buyer approval.
Define coating system, thickness or corrosion target and thread-fit requirement. The review outcome is a compatible process and document plan.

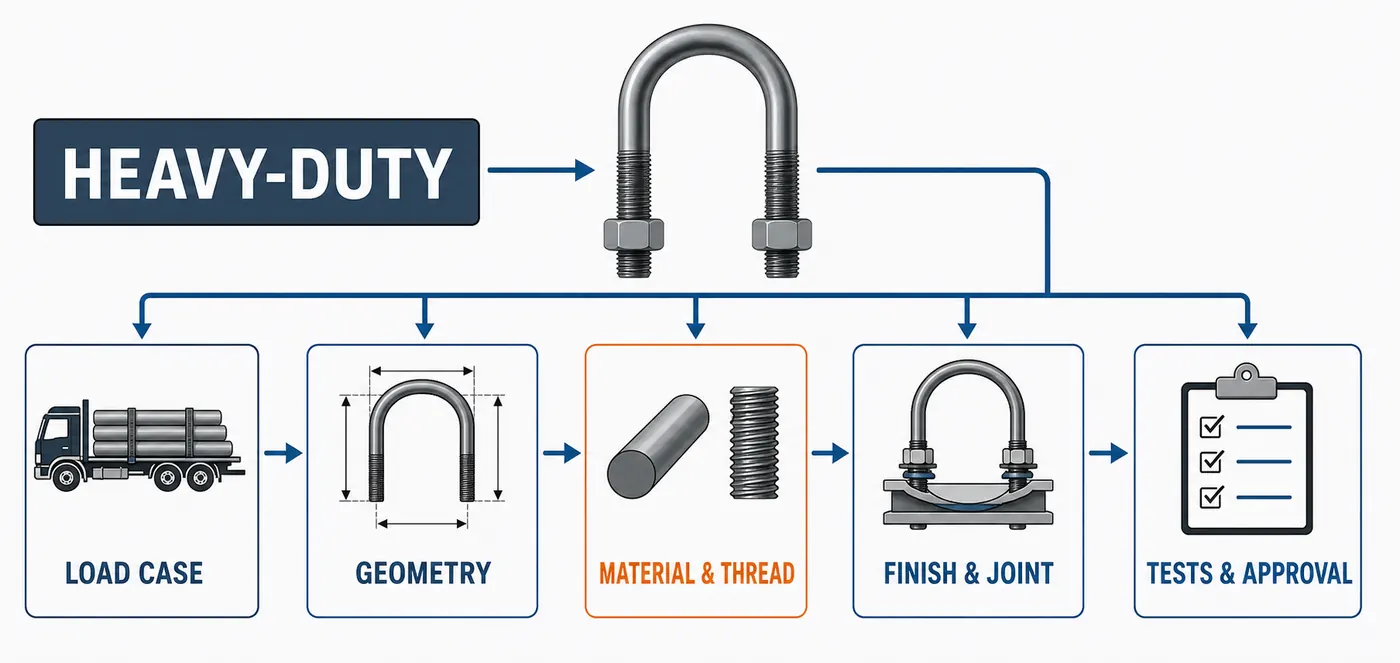

Heavy-duty is not a universal U-bolt grade or load rating. Suitability depends on the application load and duty cycle, geometry, material and mechanical requirements, thread, joint hardware, finish, installation method and acceptance tests approved by the buyer's engineer.
Describe static and dynamic loading, vibration, fatigue exposure, temperature, corrosive environment, mating components, duty cycle and any safety-critical classification. Suspension and other fatigue-sensitive assemblies require the governing OEM or application specification and engineering approval. Generic lifting or rigging suitability must never be inferred from U-bolt shape.
Translate "high tensile" into a named material specification, property class or grade and its test basis. A requested ISO property class and a SAE grade are not automatically interchangeable because thread systems, diameter limits and governing requirements differ. Any proposed substitution remains subject to the buyer's engineering approval.
Define the mating plate, nuts and washers, installation or preload method, surface finish and measurable acceptance criteria. Corrosion resistance should be expressed through a material or coating system, exposure, test method and endpoint — not through a vague adjective. Torque, fatigue life and reuse advice require application-specific validation and are not supplied as universal values.
Each reference below controls only what its own scope covers. Citing a standard does not establish stock, load capacity, application approval or corrosion performance.
| Reference | What it can control | What it does not prove |
|---|---|---|
| ASME B18.31.5 | Inch-series bent-bolt geometry and ordering conventions | Stock, load capacity, grade or finish |
| SAE J429 | Inch-series steel U-bolt mechanical and material requirements within scope | Application fit, fatigue life or corrosion performance |
| ISO 898-1 | Metric property classes and mechanical or physical requirements within scope | Corrosion, fatigue, torque-to-clamp or shear suitability |
| DIN 3570 | Pipe-fastening steel U-bolts or straps for the stated pipe-size scope | General custom, trailer or suspension suitability |
| Customer drawing and purchase specification | Project geometry, tolerances and acceptance requirements | Manufacturer capability until verified |
The ordered drawing, thread system, dimensions and grade or property class must stay within the selected standard's scope. No reference substitutes for the buyer's joint design or application validation.
ASME B18.31.5-2011 (R2021) establishes general and dimensional requirements for inch-series bent bolts and provides ordering conventions for several U-bolt bend forms. It is a geometry and ordering reference; citing it does not establish material, finish, stock status, load capacity or application approval.
SAE J429 can govern qualifying inch-series steel U-bolts within its scope, while ISO 898-1 defines mechanical and physical requirements for qualifying metric carbon and alloy steel fasteners. The ordered drawing, thread system, dimensions and grade or property class must stay within the selected standard's scope.
DIN 3570 applies to its defined steel-strap or U-bolt pipe-fastening range. It should not be used as a universal custom U-bolt standard and does not establish suitability for trailer, axle, leaf-spring or unrelated equipment joints.
The customer drawing and purchase specification govern requirements outside a standard dimensional lane, including project geometry, tolerances and acceptance requirements.
Specify material and finish through named specifications and measurable targets. A material family or finish name alone does not define mechanical performance, corrosion behaviour or application suitability.
Specify carbon steel, alloy steel or stainless steel through a named grade or governing specification, together with heat-treatment condition where relevant. Material family alone does not define mechanical performance, corrosion behavior or application suitability. The selected manufacturing route must confirm the ordered material and process before quotation.

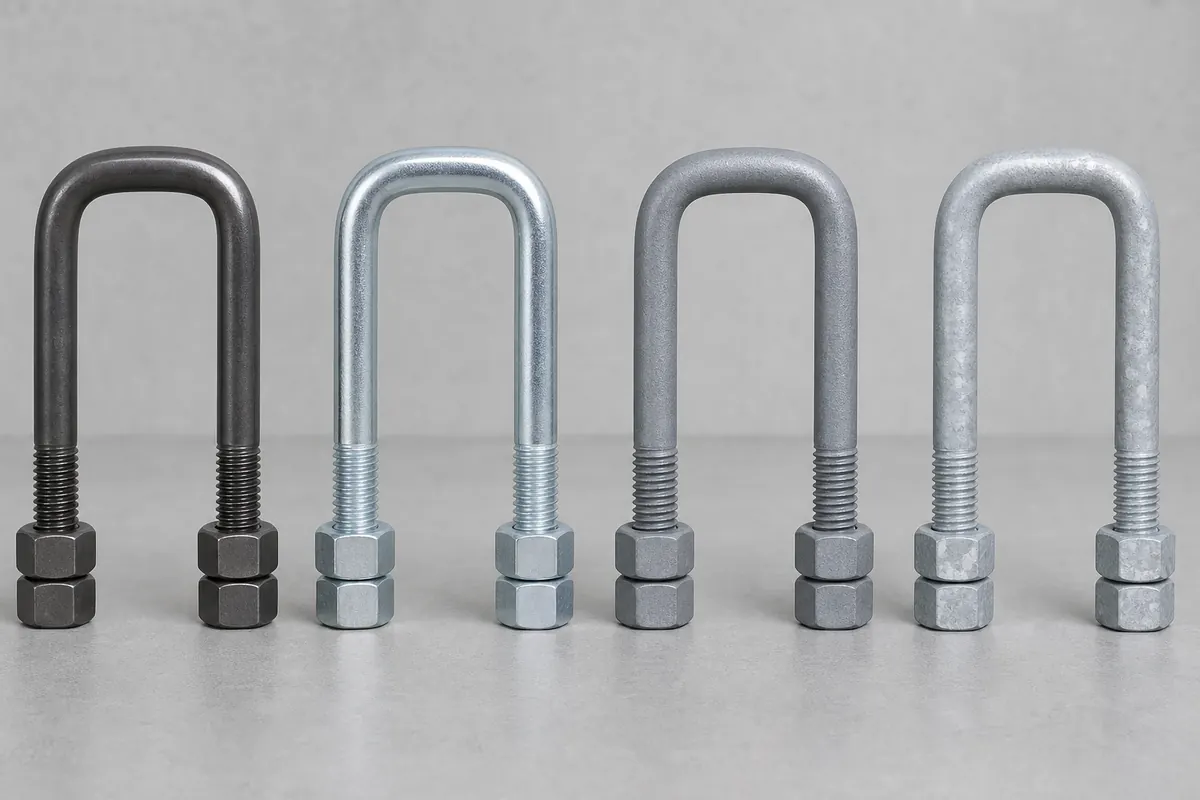

Plain, zinc, zinc-flake-like, hot-dip galvanized or another specified finish can be reviewed as RFQ categories, subject to manufacturer verification. State coating system, thickness or corrosion target, test method and endpoint, appearance needs and mating-hardware compatibility.
High-strength plated parts need a process-specific hydrogen-embrittlement review. Coating thickness can also affect thread engagement and nut fit, particularly when the finish is applied after threading. State the prevention, relief, verification and post-finish thread-gauge requirements that apply to the ordered part; do not choose a coating solely from a generic strength label.
Identify critical characteristics and the sampling or acceptance plan instead of requesting an undefined "full inspection". Test availability, laboratory route and reporting are confirmed for the selected manufacturer and order.
The inspection plan can include drawing dimensions, bend form, leg and thread lengths, thread-gauge checks and visual finish criteria as ordered. Identify critical characteristics and the sampling or acceptance plan instead of requesting an undefined "full inspection".
Mechanical tests must reference the named material or mechanical standard, grade and sampling basis. Coating thickness, adhesion or corrosion tests require a defined method and acceptance criterion. Test availability, laboratory route and reporting are confirmed for the selected manufacturer and order.
Request the applicable material certificate, inspection report, certificate of conformity, PPAP/APQP package or third-party inspection during RFQ review. Document type and EN 10204 designation, where applicable, must be confirmed before order placement. FastenersFromTurkey coordinates the document flow; certificates remain attributable to the issuing manufacturer or laboratory.
The process begins with drawing and specification review, followed by clarification of missing inputs such as undefined datums, tolerances, mating parts or acceptance criteria.
The requirement is reviewed against available manufacturing capability. Confirmed process capability — not a generic product photograph — determines whether the drawing is feasible.
Manufacturability, tooling or non-recurring engineering, sample or first-article needs and approval steps are defined before quotation and production planning.
Price, MOQ, tooling, sample cost and lead time depend on geometry, material, process, finish, testing, documentation, quantity and packaging. Send first-order quantity, annual demand, destination, requested delivery and preferred Incoterm. EXW, FOB, CFR or CIF can be reviewed where commercially appropriate; the named place and final basis are confirmed in the offer.
Drawing-controlled U-bolts may be reviewed for pipe or support systems, structural frames, equipment mounting, industrial clamps, marine or corrosive assemblies and OEM parts.
The application determines which geometry, material, finish, tests and approvals are relevant. Two parts that share a U shape can require entirely different drawings, mechanical requirements and acceptance evidence.
Safety-critical and fatigue-sensitive uses remain subject to buyer or OEM engineering approval. Generic lifting or rigging suitability must never be inferred from U-bolt shape.
Use the round and square U-bolts route when the primary decision is whether the bend follows a pipe, rectangular tube or frame. Trailer, axle and leaf-spring work belongs in the trailer and suspension U-bolts specification route because the axle, spring pack, plate and OEM requirements control the joint.
Provide the drawing or standard, rod and thread diameter, pitch, inside width, height, leg and thread lengths, bend radius, tolerances, material or mechanical requirement, finish, tests, documents, quantity, destination and requested delivery.
Heavy-duty is not a universal U-bolt grade. Suitability depends on the application load and duty, geometry, material and mechanical requirements, thread, joint hardware, finish, installation method and acceptance tests approved by the buyer's engineer.
ASME B18.31.5 can provide inch-series bent-bolt geometry and ordering conventions, SAE J429 can govern inch-series steel U-bolt mechanical requirements within scope, ISO 898-1 can define metric property classes within scope, and DIN 3570 applies to its specified pipe-fastening range. The drawing and purchase specification govern project-specific requirements.
Yes. Send a dimensioned drawing showing both legs, thread lengths, bend form, radius, centerline or tangent dimensions and tolerances. Feasibility, tooling and the production method are confirmed for the specific order.
Price, minimum order quantity and lead time are confirmed after drawing, material, process, tooling, finish, testing, documentation, quantity, packaging, destination and delivery requirements are reviewed.
Trailer, axle, leaf-spring and suspension U-bolts require application-specific geometry, mechanical requirements and engineering approval. Submit the OEM drawing or specification through the trailer and suspension U-bolts page.
FastenersFromTurkey supplies custom and heavy-duty U-bolts made to drawing in Turkey. Send the controlled drawing and revision, complete geometry and tolerances, thread, material and mechanical requirements, finish, inspection and document scope, tooling status, first-order quantity, annual demand, packing, Incoterm and destination.
